3D Data Validation Agent

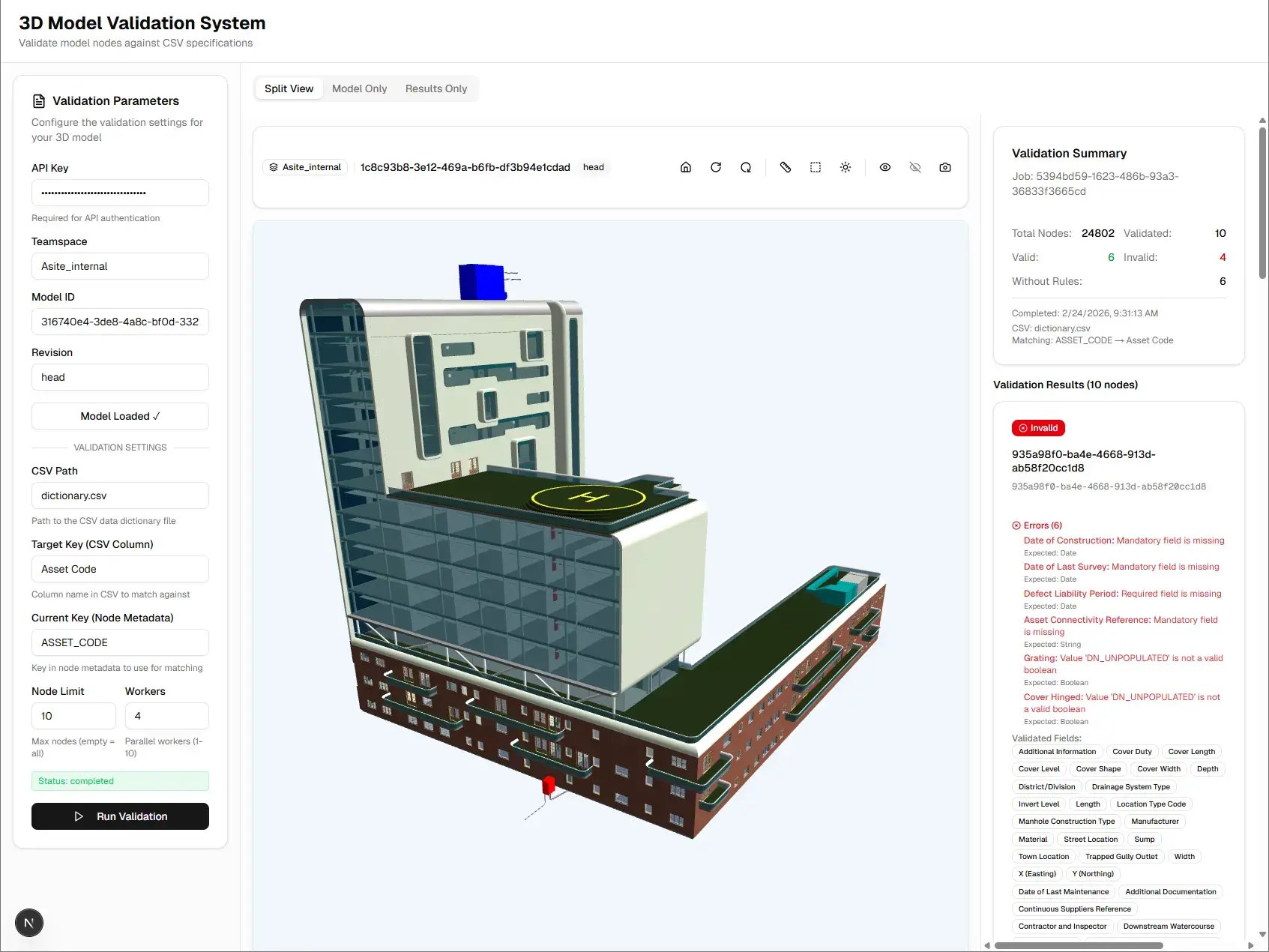

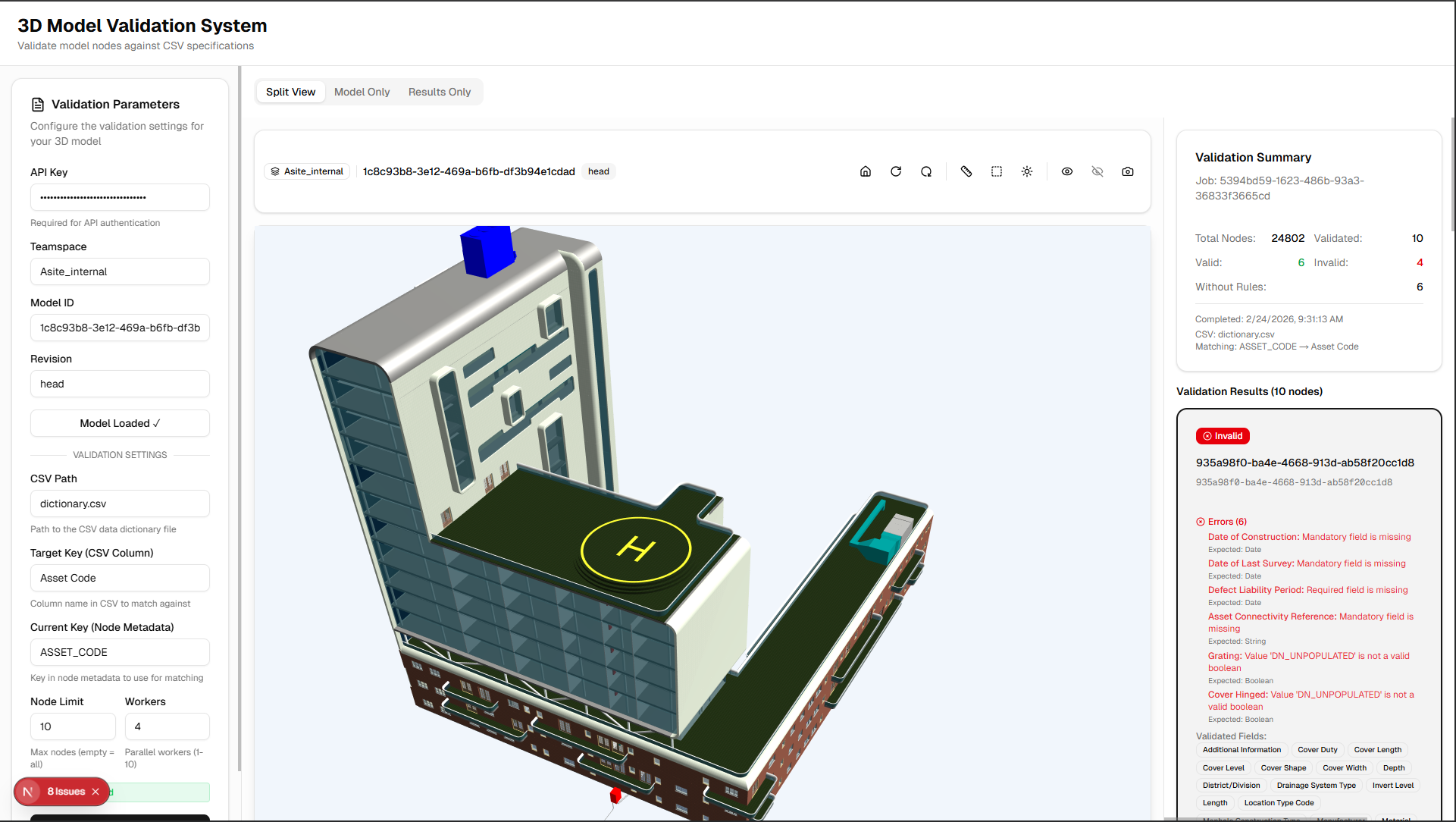

The 3D Data Validation Agent verifies BIM models against defined regulatory and project standards.

It extracts geometry and associated metadata from uploaded models and evaluates them against project-specific validation rules or selected frameworks such as ADMM and MODD, generating results in JSON, CSV, and issue tickets in 3D Repo for review and tracking.

This identifies non-compliant elements before submission and structures data for compliance reporting in Power BI, reducing costly rework later in the project lifecycle.

Common Use Cases:

Validate 3D BIM models against project standards, regulatory codes, and Uniclass
classifications before submission
Extract geometry and metadata to identify non-compliant elements and prevent costly rework
Check models against frameworks like ADMM (Asset Data Management Manual), MODD (Master Operational Design Document), or custom Uniclass rules, generating issue tickets for review
Structure validation results for reporting and insights in Power BI or other data reporting toolsets
Ensure models meet contractual, regulatory, and classification requirements before client or authority submission
Track compliance with logs and issue tickets for audit and handover readiness
